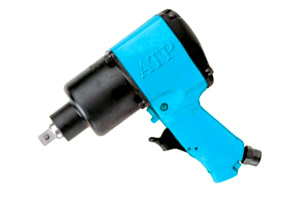

ATP- 5040 Air Impact Wrench
1/2" Bolt Capacity
| The 1/2" ATP-5040 Impact Wrench is ideally suited for the heavy duty maintenance and assembly applications. The "rocking dog" clutch is designed for either soft or hard pull-up conditions, with a super fast run down. The three piece housing provides access to all moving parts while the oil bath clutch provides for constant lubrication for added durability.
Please feel free to contact us with any questions about the ATP 5040 impact wrench at 1-877-702-8665. |
 |
|
 |
|
ATP 5040 1/2"Bolt Capacity Impact Wrench Specifications
|
|||||||||
| Torque Working Ft-Lb |
Shank Size (In.) |
Retainer | Overall Length (Inch) |
Net Weight |
Hose Size (ID) | Max Ft-Lb |
Equivalent To |
Model No. |
|
| 250 (340Nm) | 1/2" Square | Ring Retainer |
6-7/8" | 6.0 Lbs | 1/2" | -- | CP6440-RSR | ATP5040 PT-RR | |
| 250 (340Nm) | 1/2" Square | Pin Retainer |
6-7/8" | 6.0 Lbs | 1/2" | -- | CP6440-RS | ATP5040 PT-PR | |
| 250 (340Nm) | 7/16" Female | Quick Change Chuck | 8-1/8" | 6.25 Lbs | 1/2" | -- | CP6440-RSS | ATP5040 PT-QC | |
