ATP- 7506 Air Impact Wrenches
5/8" - 3/4" Bolt Capacity

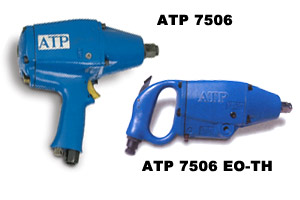

The ATP 7506 impact wrench is a powerful heavy duty 3/4" wrench. It is compact and easy to handle, suited for continuous duty cycles. Available in 3 models.
Please feel free to contact us with any questions |
 |
|
 |
|
ATP 7506 - 5/8" - 3/4"Bolt Capacity
Impact Wrench Specifications |
||||||||||
| Torque Working Ft-Lb |
Handle Type | Data Shank |
Retainer | Overall Length (Inch) |
Net Weight |
Hose Size (ID) | Max Ft-Lb |
Equivalent To |
Model No. |
|
| 390 | Pistol Grip | 3/4" Square |
Through Hole |
8.75" | 12 Lbs | 1/2" | 650 | CP-0606SASAB | ATP7506 PT-TH | |
| 390 | Pistol Grip | 3/4" Square |
Ring Retainer |
8.75" | 12 Lbs | 1/2" | 650 | CP-0606SASAR | ATP7506 PT-RR | |
| 390 | End Grip Outside Trigger | 3/4" Square |
Through Hole |
11.5" | 12.75 Lbs | 1/2" | 650 | CP-043682 | ATP7506 EO-TH | |
